Description

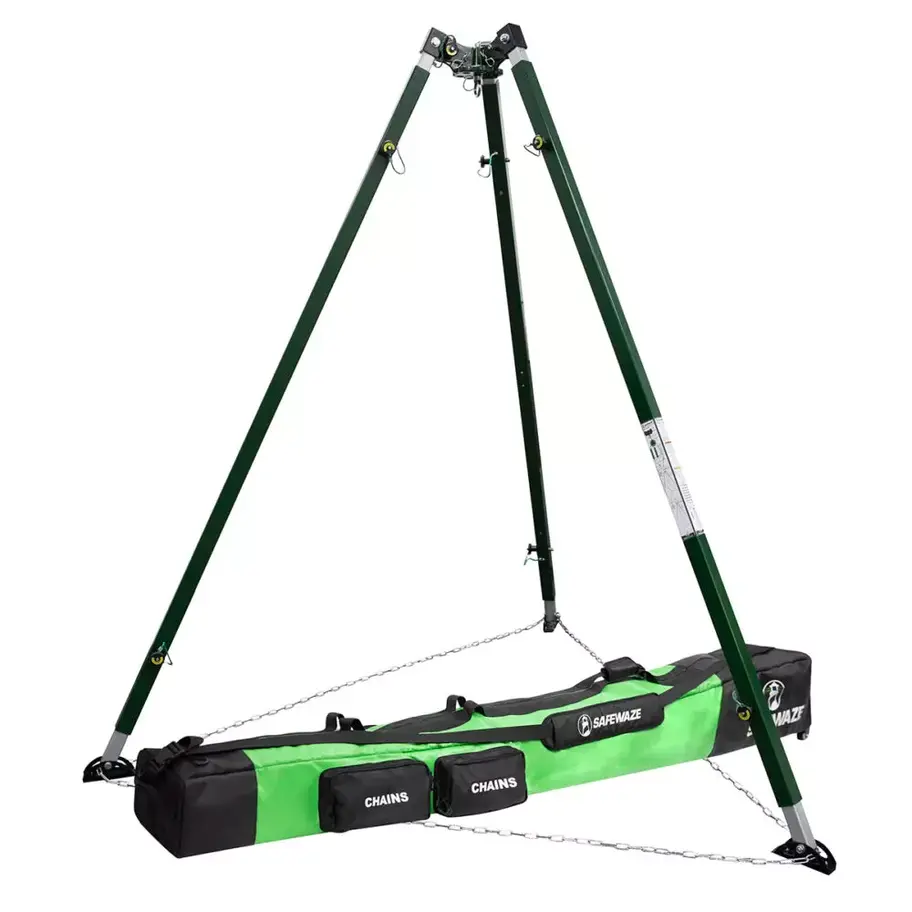

The Safewaze 10' Tech Tripod Basic is a lightweight aluminum tripod that adjusts up to an 18-foot stance, giving confined space crews a foundation anchor system for entries over trenches, manholes and vaults.
- Weighs 64.3 lbs. and packs to 97.2 inches long by 12 inches wide
- Working height from 53.5 to 119 inches; working diameter from 86.6 to 218 inches
- Seven 5,000 lb. anchor points on the head, including a centered 360-degree captive eye
- Meets ANSI Z359.18-2017 Type T, Z359.4-2013, Z117.1-2022 and OSHA 1910.140, 1926.502
- Detent pins for quick height and diameter adjustment; includes safety chain, quick link and a wheeled storage bag

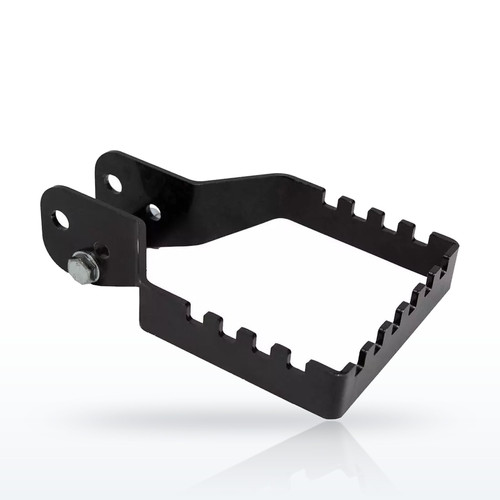

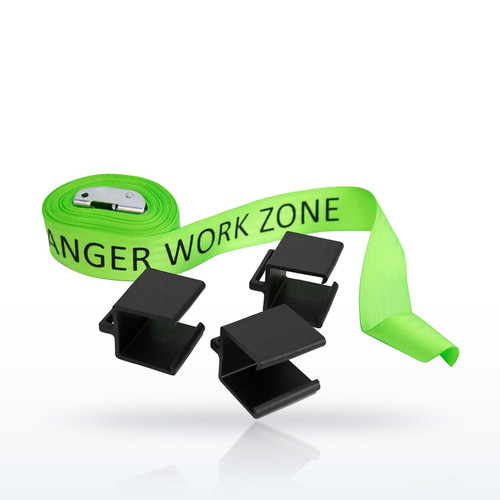

This base configuration supports over-edge scenarios such as cliffs or vertical walls and accepts optional mounting brackets, a tripod step and a perimeter warning line. Manufacturer item number: 022-11029. Sold individually.
Specifications
Packed Length: 97.2" (247 cm)
Packed Width: 12" (30.5 cm)
Working Height: Tallest stance 119" (302.3 cm), Shortest stance 53.5" (135.9 cm)
Working Diameter: Narrowest stance 86.6" (219.9 cm), Widest stance 218" (553.7 cm)
Weight: 64.3 lbs. (29.2 kg)
Tripod Attachment Points: 1 captive eye, 6 anchor points on tripod head
Minimum Breaking Strength: 5,000 lbs. (2268 kg)
ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: Up to 420 lbs. (190 kg)
Maximum Material Capacity: 620 lbs. (281 kg)
ANSI Standards: Z359.18-2017 Type T, Z359.4-2013, Z117.1-2022
OSHA Standards: 1910.140, 1926.502
