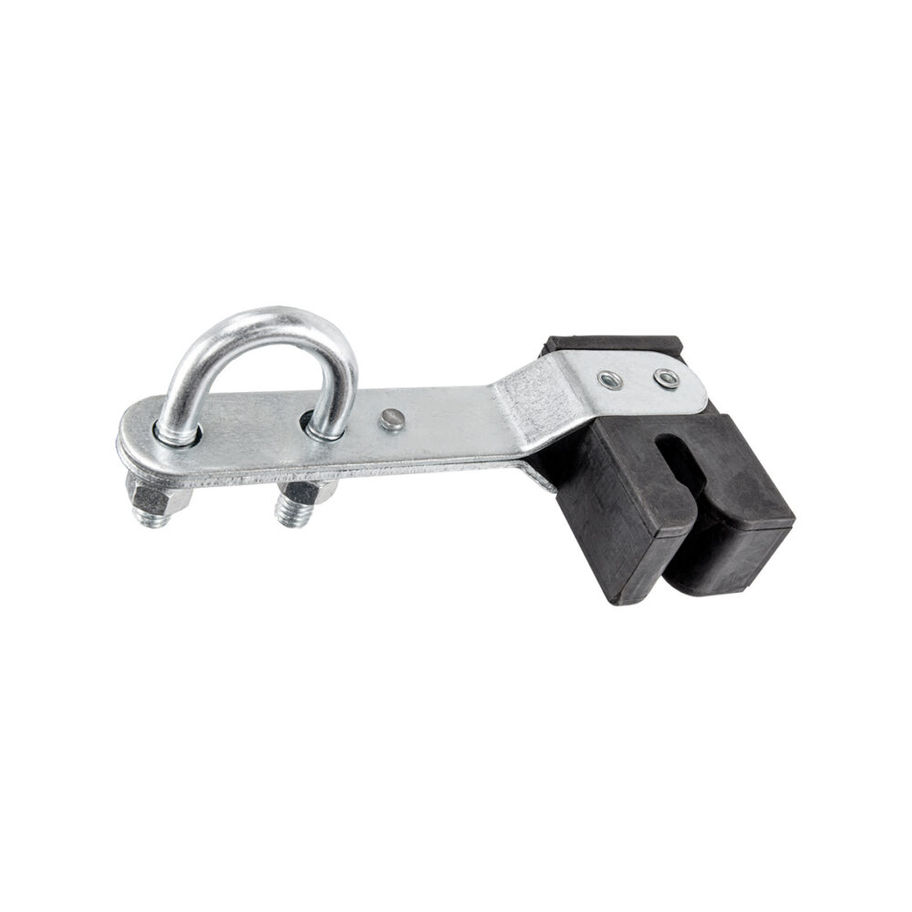

Intermediate Guide (90°)
$19.49
An Intermediate Guide keeps a fixed ladder cable running true along the length of the climb. This 90-degree version is built for a secure, angled fit on cable runs over 100 feet, recommended roughly every 25 feet.
- Materials: Galvanized steel, zinc plated steel, rubber
- Weight: 0.8 lbs. (0.4 kg)
- ANSI weight capacity: 130-310 lbs. (59-141 kg)
- Molded rubber insert protects the cable at the mounting point
- Mounts to 1-1/8 inch rungs; fasteners included
It is a maintenance part for contractors installing or extending a Safewaze fixed ladder cable system on tall structures. Manufacturer item number: 019-12026. Sold individually.
Quantity
Specifications
Materials: Galvanized steel, zinc plated steel, rubber
Weight: 0.8 lbs. (0.4 kg)
ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: Up to 420 lbs. (191 kg)
ANSI Standards: A14.3
OSHA Standards: 1910.29, 1926.1053, 1926.502, 1910.140
Home › Products › Safety › Fall Protection › Components › Ladder Systems › Intermediate Guide (90°)
Sold individually. Quantity 1 = 1 unit.
Ships from the closest warehouse. Orders placed by 9 AM Pacific usually ship the same business day; delivery is typically 2–4 business days.
