Description

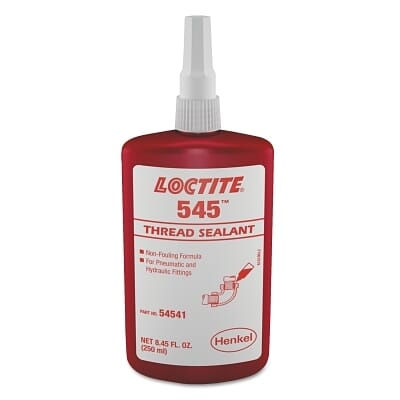

The Loctite 545 Thread Sealants, Hydraulic/Pneumatic Fittings is a sealant. Capacity volume 10 mL, 50 mL, 250 mL; min temperature -65° F; max temperature 300° F. Loctite lists Suitable for fittings up to 50 mm in diameter, including pneumatic and hydraulic fittings. Available in 3 versions. Sold by the pack size.
Specifications
| Item | Loctite data |
|---|---|
| Color | Purple |
| Capacity Volume | 10 mL; 50 mL; 250 mL |
| Min Temperature | -65° F |
| Max Temperature | 300° F |
| Resistance | Acetone; Brake Fluid; Ethanol; Unleaded Gasoline |
| Applicable Materials | Most Metals |
| Chemical Compound | Acrylic |
| Curing Method | Anaerobic |
| Pressure | 10000 psi |
| Viscosity (max) | 14000 cP |
| Hazmat | Yes |
| Width | 1 in; 1.05 in; 1.75 in |
| Height | 3.6 in; 6.05 in; 8.6 in |
Source: Loctite published product data.
Loctite 545 thread sealant locks and seals fine-threaded hydraulic and pneumatic fittings up to 50 mm in diameter, rated from -65 to 300 degrees F and free of fillers that could contaminate system fluids.
- Designed for locking and sealing of metal pipes and fittings
- Specially formulated to offer high lubricity for easy assembly and removal
- Recommended for fine threaded fittings as used in hydraulic and pneumatic installations and small fittings in general
- Suitable for fittings up to 50 mm in diameter, including pneumatic and hydraulic fittings
- Contains no fillers or particles that could contaminate system fluids, foul valves, or clog fine filters and screens
Available in 3 versions. Choose one from the list to see the exact item number and price.
Pack size
Pack size varies by version and is shown in the Version list. The price shown is for the full pack.
Item Numbers
Variant item numbers:
303420 – 10 mL Bottle · single
135486 – 50 mL · Bottle · single
195662 – 250 mL Bottle · single
