TileLink Anchor (Rivets)
$203.00

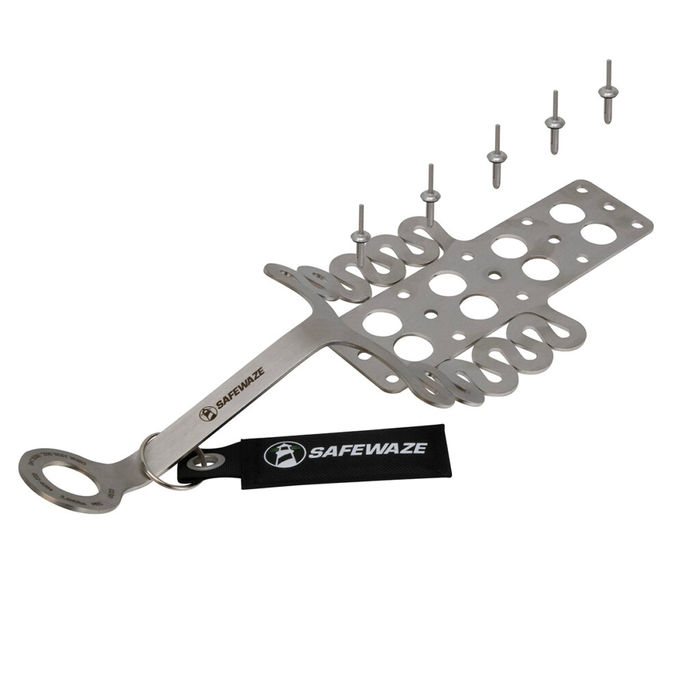

Sold under a rivet-based fastening system, the Safewaze TileLink Anchor installs beneath roof tiles so only the connection point is exposed, keeping the tile roof's weatherproofing and appearance intact.
- Stainless steel construction, 1.6 lbs., 16.7 inch length with 5 mounting holes
- Permanent installation into metal roof truss
- 3,600 lb. minimum breaking strength; ANSI weight capacity 130-310 lbs.
- Built-in energy absorber to reduce structural stress on impact
- Rated for roof pitches up to 7/12
Includes (5) 8 mm bulb rivets; it is not rated for material lifting, rope access or horizontal lifelines. Manufacturer item number: 022-4094. Sold individually.
Quantity
Specifications
Materials: Stainless steel
Weight: 1.6 lbs. (0.7 kg)
Length: 16.7" (424 mm)
Number of Holes: 5
Minimum Breaking Strength: 3,600 lbs.
ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: N/A
ANSI Standards: N/A
OSHA Standards: 1926.502, 1910.140, 1910.66
Home › Products › Safety › Fall Protection › Anchors › Roofing › TileLink Anchor (Rivets)
Sold individually. Quantity 1 = 1 unit.
