Description

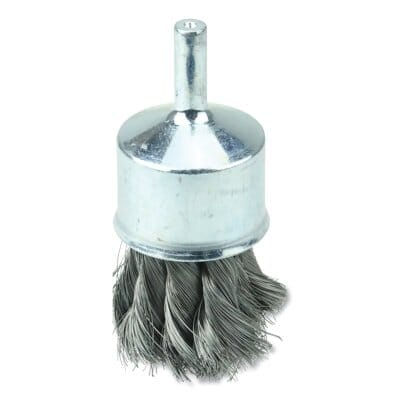

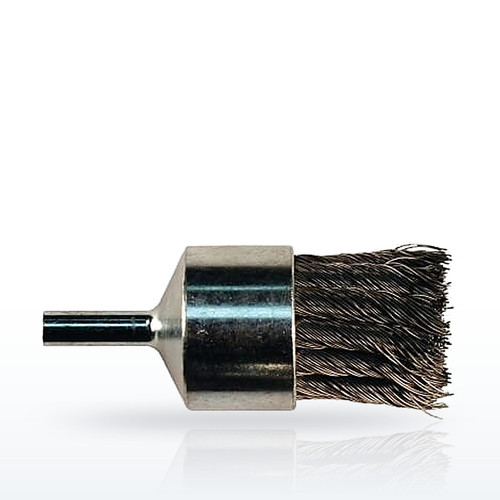

Weiler knot wire end brushes are hollow-end, knot-construction brushes built for aggressive cleaning, deburring, and die flash removal in recessed areas. Bristles come in stainless steel or carbon steel, from 0.006 in to 0.020 in wire size.
- Hollow-end wire brush
- Rugged knot-type construction provides aggressive, high-impact action for severe applications
- Ideal for cleaning in recessed areas
Available in 9 versions. Choose one from the list to see the exact item number and price.
Specifications
Product Type: End brush
Wire Material: Stainless steel; Carbon steel
Knot Style: Knotted
Type: Heavy Duty; Hollow End
Wire Size: 0.014 in; 0.020 in; 0.006 in
Trim Length: 7/8 in; 1 in
Bristle Material: Stainless Steel; Steel
Applications: Cleaning; Deburring; Die Flash Removal; Spot Facing
Used With: Electric or Pneumatic Die Grinders
Brush Diameter: 1-1/8 in; 3/4 in
Speed: 22000 RPM; 25000 RPM; 20000 RPM
Stem Diameter: 1/4 in
Length: 1.36 in; 2.6 in; 2.5 in; 3.3 in; 1.1 in; 1.04 in; 1.12 in
Width: 1.55 in; 2.9 in; .8 in; 1 in; 1.36 in; 2.55 in; 1.2 in; 1.05 in; 1.3 in
Height: 3 in; 1.55 in; .9 in; 1 in; 1.35 in; 1.15 in; 2.5 in; 3.7 in
Diameter: 3/4 in; 1-1/8 in
Wire Gauge: .014; .020; .006
Max RPM: 25000
Item Numbers
Variant item numbers:
10031 – SS Bristles (10031)
10032 – SS Bristles (10032)
10029 – SS Bristles · 3/4 in. Brush dia x 0.014 in. Wire
10030 – SS Bristles · 3/4 in. Brush dia x 0.020 in. Wire
10141 – Steel Bristles·1-1/8in Brush Dia x 0.006in Wire
10027 – Steel Bristles·1-1/8in Brush Dia x 0.014in Wire
10028 – Steel Bristles·1-1/8in Brush Dia x 0.020in Wire
10025 – Steel Bristles·3/4in Brush dia x 0.014in Wire·2500
10026 – Steel Bristles·3/4in Brush dia x 0.020in Wire·2500
