Description

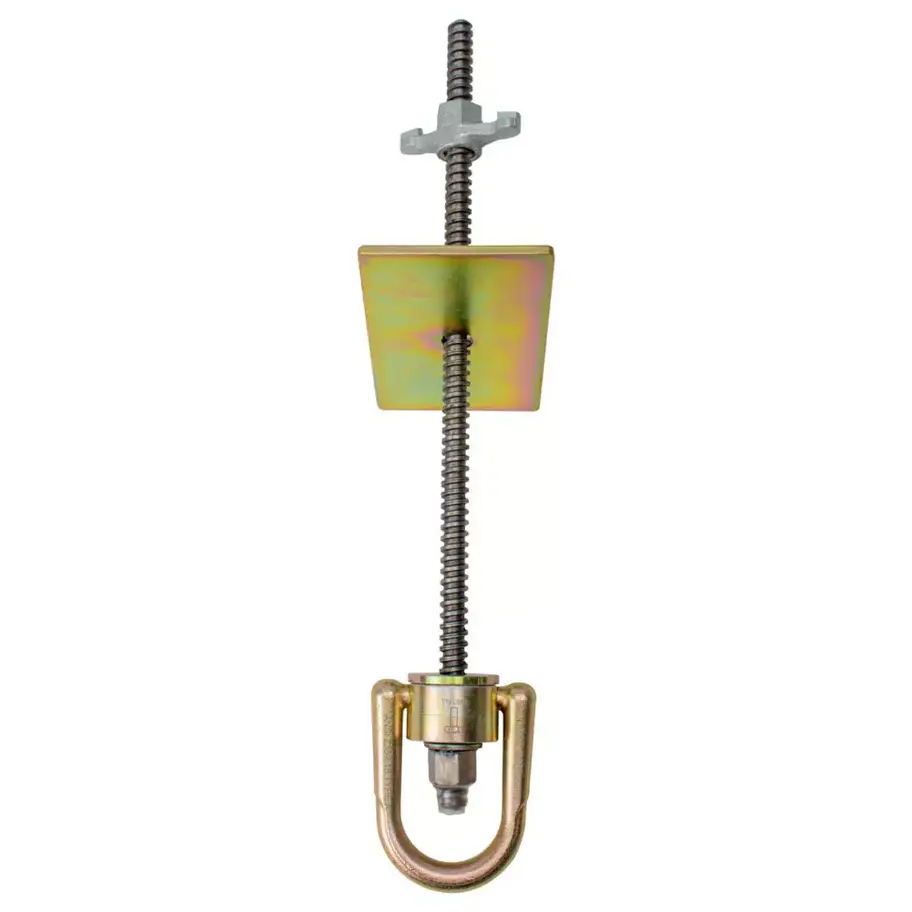

Combining the 10K Swivel Anchor with a back plate assembly, this Safewaze anchor mounts to reinforced cinder block, chillers, AC units or metal structure walls from 4 to 12 inches thick.
- Zinc-plated steel construction, 1.9 lbs.
- Back plate measures 6 inch x 4 inch x 1/4 inch
- 10,000 lb. minimum breaking strength
- Rated to ANSI Z359.18-2017 Type A; ANSI weight capacity 130-310 lbs., OSHA up to 420 lbs.
- Fastens with a 5/8 inch bolt and wingnut, maximum span 12 inches
Useful for HVAC and mechanical contractors needing a through-wall anchor near rooftop equipment. Manufacturer item number: 021-4043. Sold individually.
Specifications
Materials: Zinc-plated steel
Weight: 1.9 lbs. (839 g)
Plate Dimensions: 6" x 4" x 1/4"
Minimum Breaking Strength: 10,000 lbs.
ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: Up to 420 lbs. (191 kg)
ANSI Standards: Z359.18-2017 Type A
OSHA Standards: 1926.502, 1910.140, 1910.66
