Description

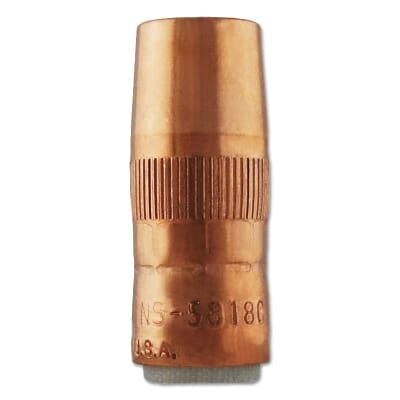

The Bernard Centerfire MIG Nozzles are mig nozzles made of copper, brass. Bore size 5/8 in, 1/2 in, 3/8 in; nozzle style 1/4 in Recess, 1.063 in O.D., 1/8 in Recess, 0.875 in O.D. and more. Bernard lists built-in spatter shield that smooths and concentrates gas flow for less weld oxidation and contamination. Available in 9 versions. Sold by the pack size.
Specifications
| Item | Bernard data |
|---|---|
| Style | Centerfire™ Large Nozzle; Centerfire™ Small Nozzle |
| Material | Copper; Brass |
| Used With | T Series Tip; D-1 Diffuser; 4423R Insulator; 4523R Insulator; TT Series Tip |
| Bore Size | 5/8 in; 1/2 in; 3/8 in |
| Nozzle Style | 1/4 in Recess; 1.063 in O.D.; 1/8 in Recess; 0.875 in O.D.; Flush |
| Length | 2.65 in; 2.5 in; 2.85 in; 3 in; 2.25 in; 1 in; 2.9 in |
| Width | 1 in; .84 in; .78 in; .75 in |
| Height | 1.1 in; 1 in; .8 in; 2.6 in; .75 in |
Source: Bernard published product data.
Bernard Centerfire MIG nozzles are copper or brass nozzles built with a spatter shield to reduce weld oxidation, sized for T Series and TT Series tips with bore sizes from 3/8 to 5/8 inch.
- Features built-in spatter shield that smooths and concentrates gas flow for less weld oxidation and contamination
- Easy-to-use and high performing
- Provides better arc starts, less spatter and more consistent welds
Available in 9 versions. Choose one from the list to see the exact item number and price.
Pack size varies by version
1/8in Recess·1/2in Bore·For T Series Tip·Brass·sin: sold individually
1/8in Recess·1/2in Bore·For T Series Tip·Copper·si: sold individually
1/8in Recess·5/8in Bore·For T Series Tip·Copper·si: sold individually
Flush·5/8 in. Bore·For T Series Tip·Copper·single: sold individually
1/8in Recess·3/8in Bore·For TT Series Tip·Brass·si: sold individually
1/4in Recess·5/8in Bore·For T Series Tip·Copper·si: sold individually
1/8in Recess·5/8in Bore·For T Series Tip·Copper·10: 10 pieces per bag
1/8in Recess·5/8in Bore·For T Series Tip·single: sold individually
Flush·3/8 in. Bore·For TT Series Tip·Copper·single: sold individually
The price shown is for the full unit of the version you pick; quantity 1 = 1 unit.
Item Numbers
Variant item numbers:
N5814C – 1/4in Recess·5/8in Bore·For T Series Tip·Copper·si
NS1218B – 1/8in Recess·1/2in Bore·For T Series Tip·Brass·sin
NS1218C – 1/8in Recess·1/2in Bore·For T Series Tip·Copper·si
NST3818B – 1/8in Recess·3/8in Bore·For TT Series Tip·Brass·si
NS5818C – 1/8in Recess·5/8in Bore·For T Series Tip·Copper·10
N5818C – 1/8in Recess·5/8in Bore·For T Series Tip·Copper·si
NS5818B – 1/8in Recess·5/8in Bore·For T Series Tip·single
NT3800C – Flush·3/8 in. Bore·For TT Series Tip·Copper·single
N5800C – Flush·5/8 in. Bore·For T Series Tip·Copper·single
