Description
The Harper Trucks 100 Trucks falls under cylinder carts and is made of steel. Handle type Uni-Handle, Uni; acetylene cylinder (max) 9-1/4 in, 8 in; bracket chain height 22-3/4 in, 15 in. Harper Trucks lists All models have a cylinder hold chain and hose supports; Recommended for small shops and garages having hard surface floors. Available in 5 versions.
Specifications
| Item | Harper Trucks data |
|---|---|
| Color | Harper Green; Green |
| Handle Type | Uni-Handle; Uni |
| Acetylene Cylinder (max) | 9-1/4 in; 8 in |
| Bracket Chain Height | 22-3/4 in; 15 in |
| Cylinder Diameter (max) | 9-1/4 in; 8 in |
| No. of Cylinders | 2 |
| No. of Wheels | 2 |
| Oxygen Cylinder (max) | 7-1/2 in; 7 in |
| Platform Depth | 8 in; 7 in |
| Platform Width | 17 in; 15 in |
| Wheel Diameter | 7 in; 8 in; 6 in |
| Load Capacity | 100 lb |
| Material | Steel |
| No. of Handles | 1 |
| Wheel Type | Semi-Pneumatic |
| Wheel Width | 1-1/2 in |
| Width | 21-1/2 in; 18-1/2 in; 18.5 in |
| Height | 45 in; 39-1/2 in; 39.5 in |
| Depth | 8 in; 7 in |
Source: Harper Trucks published product data.

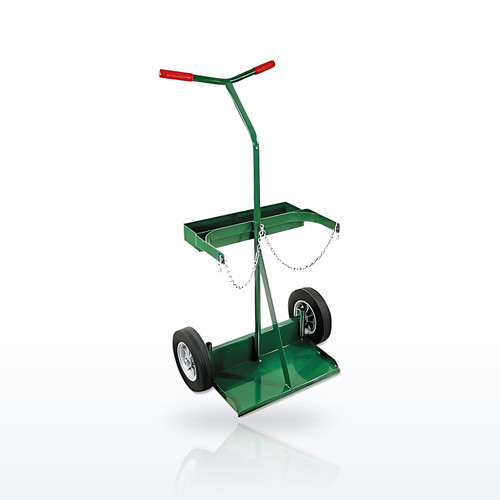

Harper Trucks Series 100 truck is a compact cylinder cart with concealed angle legs that keep the load off the wheels when parked, plus a cylinder hold chain and hose supports. It holds two small to medium cylinders up to 9-1/4 in diameter and is built for hard-surface shop floors.
- Strong and compact in design having excellent balance and rollability
- All models have a cylinder hold chain and hose supports
- Concealed angle legs prevent load from resting on wheels when truck is stationary
- Handles small to medium cylinders
- Recommended for small shops and garages having hard surface floors
Available in 5 versions. Choose one from the list to see the exact item number and price.
Item Numbers
Variant item numbers:
10824 – 2 Cylinders·7-1/2in to 9-1/4in dia·7in Semi-Pneuma
10870 – 2 Cylinders·7-1/2in to 9-1/4in dia·8in Semi-Pneuma
10671 – Holds 2 Cylinders·7in to 8in dia·6in Semi-Pneumati
106T21 – Holds 7"-8" Cylinder·6" Semi-Pneum./Plain Wheels·U
10621 – Holds 7in - 8in Cylinders·6in Semi-Pneumatic·Plain
