Description

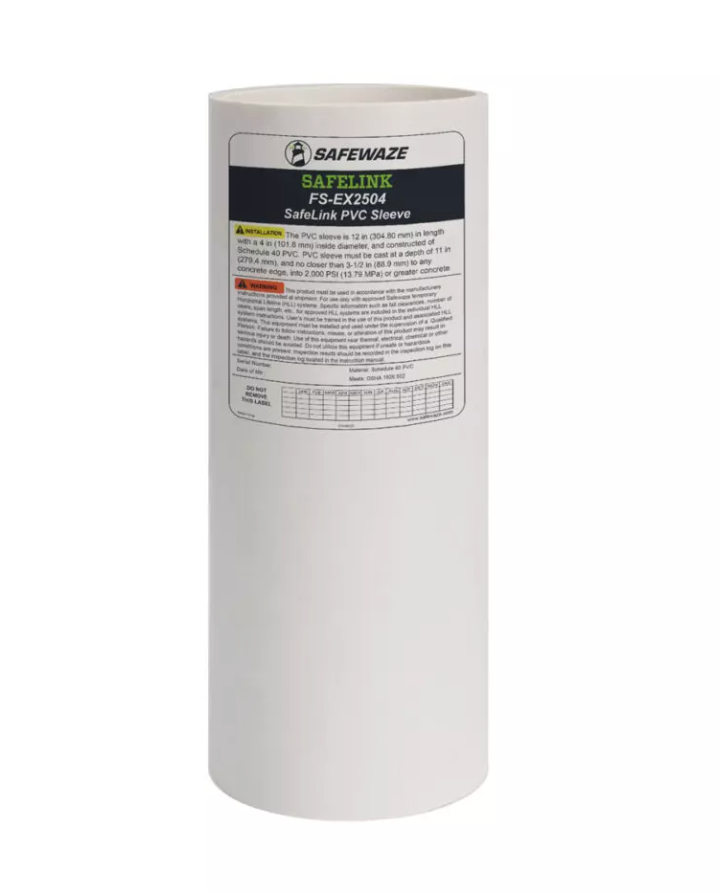

The SafeLink PVC Sleeve is a cast-in-place embedded base for the Safewaze SafeLink anchor post. It suits new concrete pours where a permanent, flush-mounted socket is preferred.
- Material: Schedule 40 PVC
- Length 12" (304.8 mm); inside diameter 4" (102 mm), outside diameter 4.5" (114.5 mm)
- Wall thickness 0.27" (6.8 mm); weight 1.4 lb. (0.6 kg)
- Cast in place at a depth of 11 inches, no closer than 3-1/2 inches to any concrete edge
- Meets OSHA standards 1926.502, 1910.66
It must be set into concrete rated at 2,000 PSI or greater and is used with the FS-EX5501-5 aluminum post, making it a fit for concrete contractors planning anchor points before a pour. Manufacturer item number: FS-EX2504. Sold individually.
Specifications
Materials: Schedule 40 PVC
Length: 12" (304.8 mm)
Inside Diameter: 4" (102 mm)
Outside Diameter: 4.5" (114.5 mm)
Thickness: 0.27" (6.8 mm)
Weight: 1.4 lb. (0.6 kg)
ANSI Standards: N/A
OSHA Standards: 1926.502, 1910.66
