Description
Safewaze FS812 is a strap anchor. Minimum breaking strength 5,000 lbs.; ANSI Weight Capacity 130-310 lbs. (59-141 kg); OSHA Weight Capacity Up to 420 lbs. (191 kg). Safewaze lists Polyester webbing with zinc-plated steel D-rings, 1 lb; Adjustable from 4 to 6 feet; 5,000 lb. minimum breaking strength; ANSI weight capacity 130-310 lbs., OSHA up to 420 lbs.
Safewaze FS812 specifications
| Item | Safewaze data |
|---|---|
| Part number | FS812 |
| Material | Polyester webbing, zinc-plated steel D-rings |
| Minimum Breaking Strength | 5,000 lbs. |
| ANSI Weight Capacity | 130–310 lb (59–141 kg) |
| OSHA Weight Capacity | Up to 420 lb (191 kg) |
| OSHA Standards | OSHA 1910.140; OSHA 1910.66; OSHA 1926.502 |
| Weight | 1 lb. (0.4 kg) |
Source: Safewaze, Technical Data Sheet FS812-TDS (PDF) (document).
Related Safewaze part numbers
| Part number | Version | Material | Minimum Breaking Strength | ANSI Weight Capacity |
|---|---|---|---|---|
| FS812 | Strap Anchors | Polyester webbing, zinc-plated steel D-rings | 5,000 lbs. | 130–310 lb (59–141 kg) |
| FS811 | Strap Anchors | Polyester webbing, zinc-plated steel D-rings | 5,000 lbs. | 130–310 lb (59–141 kg) |
| FS810 | Strap Anchors | Polyester webbing, forged zinc-plated steel D-rings | 5,000 lbs. | 130–310 lb (59–141 kg) |

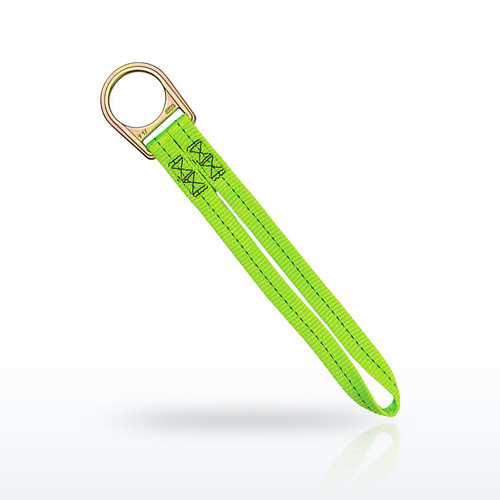

| FS815 | Strap Anchors | Polyester webbing, zinc-plated steel D-ring | 5,000 lbs. | 130–310 lb (59–141 kg) |
By Safewaze's published data; each part number links to its own page.
Safewaze FS812 questions
What is the Safewaze FS812? Safewaze FS812 is a strap anchor. Minimum breaking strength 5,000 lbs.; ANSI Weight Capacity 130-310 lbs.
What is the FS812 made of? Polyester webbing, zinc-plated steel D-rings, per Safewaze.
Which other Safewaze part numbers are in this family? FS811 (strap anchors), FS810 (strap anchors), FS815 (strap anchors).
The Safewaze Adjustable Cross Arm Strap lengthens from 4 to 6 feet, so one strap covers a range of beam or cross arm sizes without swapping equipment.
- Polyester webbing with zinc-plated steel D-rings, 1 lb.
- Adjustable from 4 to 6 feet
- 5,000 lb. minimum breaking strength
- ANSI weight capacity 130-310 lbs., OSHA up to 420 lbs.
It installs in seconds around a rated structure, making it a convenient choice for utility crews working on varying pole or arm sizes. Manufacturer item number: FS812. Sold individually.
