Description
Miller 8814-24 is a steel anchor. Anchor connector type Adjustable Beam Anchor; anchor structure Steel I-Beam; anchorage connectors rated for 22 kN (5,000 lbs). Miller lists Adjustable to fit 12–24 inch flanges; Stainless steel construction for durability; Supports up to 5,000 lbs. per worker; Meets ANSI, OSHA, and CSA requirements.
Miller 8814-24 specifications
| Item | Miller data |
|---|---|
| Part number | 8814-24 |
| Anchor Connector Type | Adjustable Beam Anchor |
| Anchor Structure | Steel I-Beam |
| Anchorage Connectors Rated for | 22 kN (5,000 lbs) |
| Dimensions (each) | 34 x 9 x 4 in |
| Connection Type | Steel I-Beam |
| Size | OS |
Source: Miller published product data.
Related Miller part numbers
| Part number | Version | Anchor Connector Type | Anchor Structure | Dimensions (each) |
|---|---|---|---|---|
| 8814-24 | Shadow Adjustable Stainless Steel Beam Anchor Fits 12 To 24-Inch | Adjustable Beam Anchor | Steel I-Beam | 34 x 9 x 4 in |

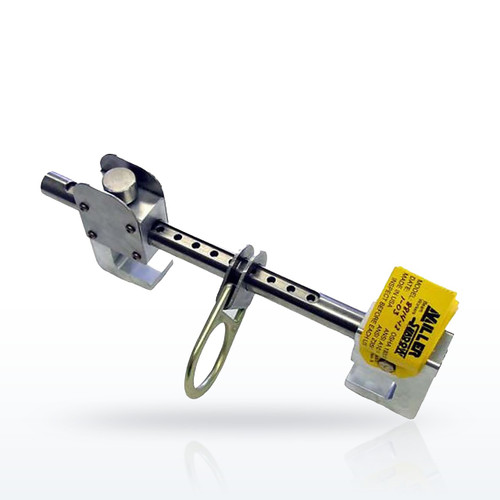

| 8814-12 | Shadow Steel Anchors | Beam Clamp | Steel I-Beam | 22 x 8.5 x 3 in |
By Miller's published data; each part number links to its own page.
The Miller adjustable beam anchor provides a safe and reliable connection point for fall protection systems on structural steel. Designed to fit beam flanges from 12 to 24 inches, it offers flexibility across various applications. Its stainless steel construction ensures durability in demanding environments.
- Adjustable to fit 12–24 inch flanges
- Stainless steel construction for durability
- Provides secure anchorage point
- Easy installation and adjustment
- Supports up to 5,000 lbs. per worker
- Meets ANSI, OSHA, and CSA requirements
Manufacturer item number: 8814-24. Sold individually.
