Description
Safewaze SW900 is a specialty specialty. Safewaze lists it as meeting ANSI Z359.18-2017 and ANSI Standards. Minimum breaking strength 5,000 lbs.; ANSI Weight Capacity 130-310 lbs. (59-141 kg); OSHA Weight Capacity Up to 420 lbs. (191 kg). Safewaze lists High-strength steel construction with a built-in D-ring, 20 lbs; Fits parapet walls up to 14 in or 21.5 in deep (two models); Fits parapet walls from 2.4 to 14.1 inches thick, minimum 8.6 inch parapet height; 5,000 lb. minimum breaking strength; rated to ANSI Z359.18-2017 Type A. Available in 2 versions.
Safewaze SW900 specifications
| Item | Safewaze data |
|---|---|
| Part number | SW900 |
| Minimum Breaking Strength | 5,000 lbs. |
| ANSI Weight Capacity | 130–310 lb (59–141 kg) |
| OSHA Weight Capacity | Up to 420 lb (191 kg) |
| ANSI Standards | ANSI Z359.18-2017 Type A |
| OSHA Standards | OSHA 1910.140; OSHA 1910.66; OSHA 1926.502 |
| Material | Alloy steel main body, zinc-plated steel screws and D-ring, stainless steel detent retaining pin with plastic handle, composite rubber pads |
| Length | 22" (558 mm) |
| Weight | 20 lbs. (9.1 kg) |
Source: Safewaze, Technical Data Sheet SW900-TDS (PDF) (document).
Related Safewaze part numbers
| Part number | Version | Minimum Breaking Strength | ANSI Weight Capacity | OSHA Weight Capacity |
|---|---|---|---|---|
| SW900 | Specialty | 5,000 lbs. | 130–310 lb (59–141 kg) | Up to 420 lb (191 kg) |

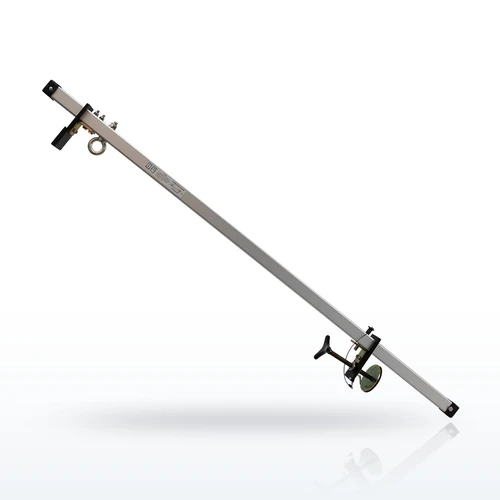

| SW901 | Specialty | 5,000 lbs. | 130–310 lb (59–141 kg) | Up to 420 lb (191 kg) |
By Safewaze's published data; each part number links to its own page.
Safewaze SW900 questions
What is the Safewaze SW900? Safewaze SW900 is a specialty specialty. Safewaze lists it as meeting ANSI Z359.18-2017 and ANSI Standards.
What is the SW900 made of? Alloy steel main body, zinc-plated steel screws and D-ring, stainless steel detent retaining pin with plastic handle, composite rubber pads, per Safewaze.
Which other Safewaze part numbers are in this family? SW901 (specialty).
The Safewaze Parapet Wall Anchor clamps onto an existing parapet wall with rubber padding and two tightening handles, avoiding drilling or surface damage on rooftop edge work.
- High-strength steel construction with a built-in D-ring, 20 lbs.
- Fits parapet walls up to 14 in or 21.5 in deep (two models)
- Fits parapet walls from 2.4 to 14.1 inches thick, minimum 8.6 inch parapet height
- 5,000 lb. minimum breaking strength; rated to ANSI Z359.18-2017 Type A
- Meets OSHA 1926.502, 1910.140 and 1910.66
Portable and reusable, it works for roof edge fall arrest or as a positioning anchor for descent off a building. Manufacturer item number: SW900. Sold individually.
Select a model to see the exact item number.
Available in 2 versions:
- 14 in – SW900
- 21.5 in – SW900-2
Technical Data Sheet SW900-TDS (PDF)
