FR Vests
29 FR vests from every brand we carry, listed with what each manufacturer publishes, and live prices.
Pick a arc rating band, brand, material or hi-vis class; the list below narrows as you choose. Prices are live.
29 garments
Ratings and specifications are as published by each manufacturer. Tap a group to open it.
Radians12 garments
- Radians SV25 Economy Class 2 Self-Extinguishing Mesh Safety Vest, Zipper — Radians · Material: Mesh · Hi-vis class: Class 2
- Radians SV75B-2 Black Bottom Self-Extinguishing Surveyor Vest — Radians · Material: Solid/Mesh · Hi-vis class: Class 2
- Radians SV92-M Arc Flash Clothing, Basic Modacrylic FR Class 2 Solid Safety Vest — Radians · Arc rating: 5.4 · Material: Solid · Hi-vis class: Class 2
- Radians SV92B-M2 Arc Flash Clothing, SV92B-M2ZGSFR Solid 5.5 oz DH Cat 2 Class — Radians · Arc rating: CAT 2 · PPE category: Category 2 · Material: Solid · Hi-vis class: Class 2
- Radians SV97-M2VGMFR Arc Flash Clothing, Premium Modacrylic FR Class 2 Mesh — Radians · Arc rating: 5.1 · Material: Mesh · Hi-vis class: Class 2
- Radians SV97-M3VGMFR Arc Flash Clothing, Premium Modacrylic FR Class 3 Mesh — Radians · Arc rating: 5.1 · Material: Mesh · Hi-vis class: Class 3
- Radians SV99-M2 Arc Flash Clothing, SV99-M2ZGSFR Solid DH Cat 1 Class 2 FR Vest — Radians · Arc rating: CAT 1 · PPE category: Category 1 · Material: Solid · Hi-vis class: Class 2
- Radians SV99-M3 Arc Flash Clothing, SV99-M3ZGSFR Solid DH Cat 1 Class 3 FR Vest — Radians · Arc rating: CAT 1 · PPE category: Category 1 · Material: Solid · Hi-vis class: Class 3
- Radians SV99A-2SZGSFR SV99A 5.7 oz Class 2 DH Air Vest — Radians · Arc rating: CAT 2 · Hi-vis class: Class 2
- Radians SV99A-3SZGSFR 5.7 oz Class 3 DH Air Vest, Segmented Reflective Tape — Radians · Arc rating: CAT 2 · Hi-vis class: Class 3
- Radians SV99W-M2ZGSFR Arc Flash Clothing, SV99W Class 2 Womens FR Vest — Radians · Arc rating: CAT 1 · Hi-vis class: Class 2
- Radians SV99W-M3ZGSFR Arc Flash Clothing, SV99W Class 3 Womens FR Vest — Radians · Arc rating: CAT 1 · Hi-vis class: Class 3
Portwest7 garments
- Portwest FR611 Arc Flash Clothing, Modaflame Hi-Vis Class 2 FR Mesh Vest — Portwest
- Portwest FR75 Bizflame Hi-Vis FR Vest — Portwest
- Portwest IUS1130 Arc Flash Clothing, Ultrasoft 7oz FR Surveyor Vest — Portwest
- Portwest IUS1715 Arc Flash Clothing, Ultrasoft 7oz FR Yard Vest — Portwest
- Portwest UFR23 Arc Flash Clothing, Bizflame Hi-Vis FR Woven Vest — Portwest
- Portwest UFR24 Arc Flash Clothing, Modaflame Hi-Vis Class 3 FR Mesh Vest — Portwest
- Portwest UMV21 Arc Flash Clothing, Modaflame Hi-Vis ARC FR Mesh Vest — Portwest
PIP5 garments

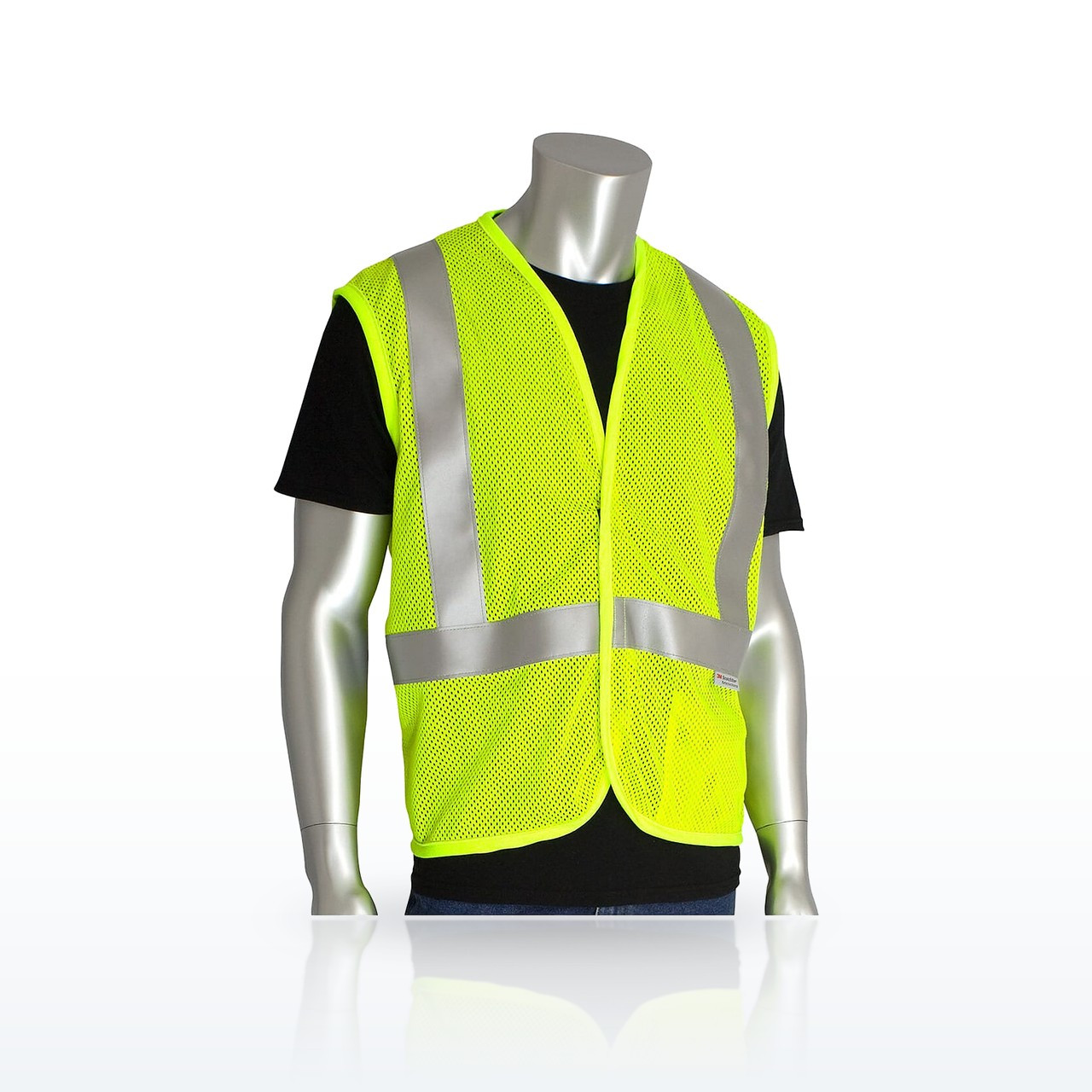

- PIP 305-2100 Arc Flash Clothing, ANSI Type R Class 2 AR/FR Mesh Vest — PIP · Arc rating: 4.6 cal/cm² · PPE category: Yes · Material: Mesh; Modacrylic · Fabric weight: 6.2oz · Hi-vis class: R2 · Standards: NFPA 70E; ASTM F1506
- PIP 305-2105 Arc Flash Clothing, AR/FR Mesh Vest With "D" Ring Access ANSI Type — PIP · Arc rating: 4.6 cal/cm² · PPE category: Yes · Material: Mesh, Modacrylic · Fabric weight: 6.2oz · Hi-vis class: R2 · Standards: NFPA 70E; ASTM D6413; ASTM F1506
- PIP 305-2200 Arc Flash Clothing, ANSI Type R Class 2 AR/FR Solid Vest — PIP · Arc rating: 8.9 cal/cm² · PPE category: 2 · Material: Solid; Westex · Fabric weight: Standard Weight · Hi-vis class: R2 · Standards: NFPA 70E; ASTM F1506
- PIP 305-3100 Arc Flash Clothing, ANSI Type R Class 3 AR/FR Mesh Vest — PIP · Arc rating: 4.6 cal/cm² · PPE category: Yes · Material: Mesh; Modacrylic · Fabric weight: 6.2oz · Hi-vis class: R3 · Standards: NFPA 70E; ASTM F1506
- PIP 305-3200 Arc Flash Clothing, ANSI Type R Class 3 AR/FR Solid Vest — PIP · Arc rating: 8.9 cal/cm² · PPE category: 2 · Material: Solid, Westex · Fabric weight: 6.5oz · Hi-vis class: R3 · Standards: NFPA 70E; ASTM F1506
Reflective Apparel2 garments
- Reflective Apparel 509FRGS Arc Flash Clothing, ANSI Type R Class — Reflective Apparel · Arc rating: 9.1 cal/cm² · PPE category: 2 · Material: Aramid Blend, Modacrylic, Solid · Hi-vis class: R2 · Standards: CSA Z96; NFPA 70E; NFPA 2112; ASTM F1506
- Reflective Apparel 510FRGS Arc Flash Clothing, ANSI Type R Class — Reflective Apparel · Arc rating: 9.1 cal/cm² · PPE category: 2 · Material: Aramid Blend, Modacrylic, Solid · Hi-vis class: R3 · Standards: NFPA 70E; NFPA 2112; ASTM F1506
Ergodyne1 garment
- Ergodyne 2149 Hi-Vis Vests, GloWear Class 2 FR Hi-Vis Mesh Vest — Ergodyne · Arc rating: 4.6 cal/cm² · Material: Modacrylic · Hi-vis class: Class 2 · Standards: ANSI/ISEA 107-2020; ASTM F1506; NFPA 70E
MCR Safety1 garment
- MCR Safety FRMCL3ML Flame Resistant (FR) Safety Vest — MCR Safety · Arc rating: 4.6 · Hi-vis class: Class III
OccuNomix1 garment
- OccuNomix FR-VM1112-Y Hi-Vis Vests, Class 2 FR Hi-Vis Solid Vest — OccuNomix · Material: Modacrylic blend · Hi-vis class: Class 2 · Standards: ANSI/ISEA 107; NFPA 2112
Do not see what you need? Browse the category or call (925) 215-7337.
In plain words. An arc rating is the amount of heat energy, in calories per square centimetre, that a fabric blocked before the test predicted a second-degree burn; it is printed on the garment label as ATPV or EBT. NFPA 70E groups PPE into categories by the minimum rating: Category 1 needs 4 cal/cm², Category 2 8, Category 3 25, Category 4 40. Flame resistance (the fabric self-extinguishes) is a separate test from the arc rating; a garment can be FR without an arc rating. Every number here is the manufacturer's.
Technical. Arc ratings by ASTM F1959 (reported as ATPV, or EBT where the fabric breaks open first); FR garment performance by ASTM F1506 (electric arc) and NFPA 2112 (flash fire, with NFPA 2113 for selection); NFPA 70E Table 130.7(C)(15)(c) sets the PPE categories by incident energy. Hi-vis FR garments also carry an ANSI/ISEA 107 class. Fabric weights are in ounces per square yard as published.
Ratings and specifications on this page are shown as published by the manufacturer or the named standard and describe performance in that standard's test. They are not a recommendation for any task. The employer's hazard assessment decides what protective equipment a job needs. Verify details against the manufacturer's current documentation before you buy.
The standard at a glance
Copied from the named standard or regulation and shown with its source; nothing in these tables is Bayshore's recommendation.
NFPA 70E PPE categories
| PPE category | Minimum arc rating of the clothing system |
|---|---|
| Category 1 | 4 cal/cm² |
| Category 2 | 8 cal/cm² |
| Category 3 | 25 cal/cm² |
| Category 4 | 40 cal/cm² |
Source: NFPA 70E, Table 130.7(C)(15)(c). Arc ratings (ATPV or EBT) tested to ASTM F1959; FR garments to ASTM F1506 and NFPA 2112.
