FR Arc Flash Clothing

35 FR arc flash clothing from every brand we carry, listed with what each manufacturer publishes, and live prices.

Pick a arc rating band, brand, material or hi-vis class; the list below narrows as you choose. Prices are live.

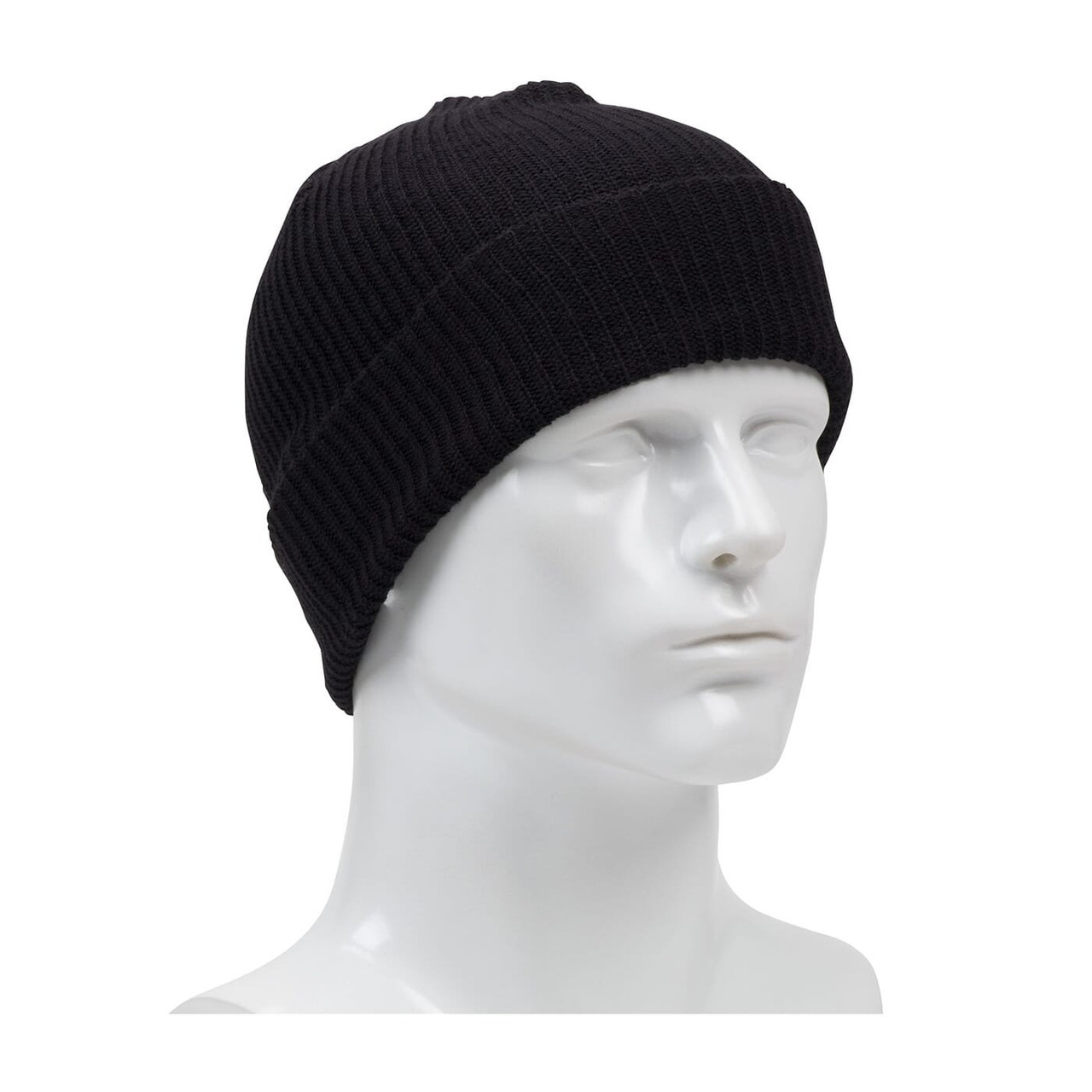

PIP 360-1500FR Hard Hat Winter Liners, FR Knit Watch Cap
By type
FR Head & Face Covers (87)FR Shirts (56)FR Coveralls & Overalls (50)FR Arc-Rated Harnesses (41)FR Arc Flash Clothing (35)FR Coats & Jackets (33)FR Pants & Bibs (32)FR Rainwear (31)FR Vests (29)FR Arc Flash Accessories (23)FR Sleeves & Bibs (11)
By arc rating band
Arc-Rated Clothing, 8–24.9 cal/cm² (meets Category 2) (99)Arc-Rated Clothing, 4–7.9 cal/cm² (meets Category 1) (52)Arc-Rated Clothing, 40 cal/cm² and above (meets Category 4) (18)Arc-Rated Clothing, 25–39.9 cal/cm² (meets Category 3) (12)
By arc rating band and type
FR Arc Flash Clothing, 8–24.9 cal/cm² (meets Category 2) (17)FR Vests, 4–7.9 cal/cm² (meets Category 1) (15)FR Arc Flash Accessories, 8–24.9 cal/cm² (meets Category 2) (11)FR Shirts, 8–24.9 cal/cm² (meets Category 2) (14)FR Pants & Bibs, 8–24.9 cal/cm² (meets Category 2) (10)FR Arc Flash Clothing, 40 cal/cm² and above (meets Category 4) (9)

35 garments

Ratings and specifications are as published by each manufacturer. Tap a group to open it.

PIP26 garments

Open the PIP page

Ergodyne3 garments
OccuNomix2 garments
Portwest2 garments
Jackson Safety1 garment
MSA1 garment

Do not see what you need? Browse the category or call (925) 215-7337.

In plain words. An arc rating is the amount of heat energy, in calories per square centimetre, that a fabric blocked before the test predicted a second-degree burn; it is printed on the garment label as ATPV or EBT. NFPA 70E groups PPE into categories by the minimum rating: Category 1 needs 4 cal/cm², Category 2 8, Category 3 25, Category 4 40. Flame resistance (the fabric self-extinguishes) is a separate test from the arc rating; a garment can be FR without an arc rating. Every number here is the manufacturer's.

Technical. Arc ratings by ASTM F1959 (reported as ATPV, or EBT where the fabric breaks open first); FR garment performance by ASTM F1506 (electric arc) and NFPA 2112 (flash fire, with NFPA 2113 for selection); NFPA 70E Table 130.7(C)(15)(c) sets the PPE categories by incident energy. Hi-vis FR garments also carry an ANSI/ISEA 107 class. Fabric weights are in ounces per square yard as published.

Ratings and specifications on this page are shown as published by the manufacturer or the named standard and describe performance in that standard's test. They are not a recommendation for any task. The employer's hazard assessment decides what protective equipment a job needs. Verify details against the manufacturer's current documentation before you buy.

The standard at a glance

Copied from the named standard or regulation and shown with its source; nothing in these tables is Bayshore's recommendation.

NFPA 70E PPE categories
PPE categoryMinimum arc rating of the clothing system
Category 14 cal/cm²
Category 28 cal/cm²
Category 325 cal/cm²
Category 440 cal/cm²

Source: NFPA 70E, Table 130.7(C)(15)(c). Arc ratings (ATPV or EBT) tested to ASTM F1959; FR garments to ASTM F1506 and NFPA 2112.
